Marine Cone Fender

Introduction

Cone Fender is the latest generation of"Cell Fender"combining excellent energy capacity with low reaction force to give the most efficient performance.The conical shape keeps the fender body stable under all combinations of axial, shear and angular loading.Hence,it is ideal for berths where large berthing angles and heavy impacts need to be accommodated.All Cone Fenders are single piece mouldings so they are robust,long lasting and easy to install.In most projects,the frontal frame is generally used in conjunction with Cone Fender System.Generally the frontal frame is consist of Steel Panel and UHMW PE Pads.Cone Fenders also have been used with great success behind fender piles,in Parallel Motion Fender Systems and for numerous other applications.

Features

Highly efficient structure

Stable performance under large berthing angles and shears

Versatile design suits various applications

Multiple rubber compounds achieve various performances

Easy installation

Applications

Tanker Berths

Container Terminals

RoRo &Cruise Berths

BulkCarrier Terminals

Dolphins &Monopiles

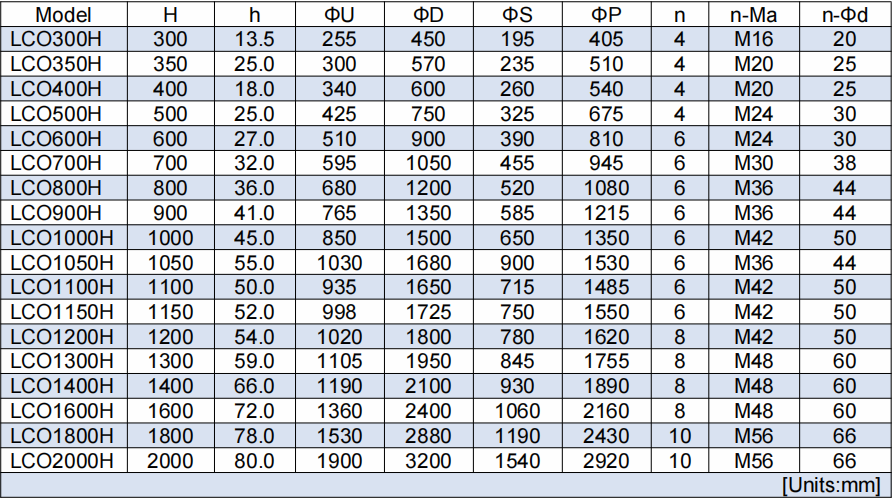

Dimensions

Performance Curve

Deflections

For example, when the compression deformation is 30%, H1 = 30%, R1 = 97%, and E1 = 30%.
Reaction force: R(30%) = R × R1 = R × 97%
Energy absorption: E(30%) = E × E1 = E × 30%
For instance, when the deflection is 30%, then H1 = 30%, R1 = 97%, and E1 = 30%.
Reaction force: R(30%) = R × R1 = R × 97%
Energy absorption: E(30%) = E × E1 = E × 30%

Proven In Practice

Initially established as Qingdao Luhang Marine Airbag Factory in 1988 and changed to Qingdao Luhang Marine Airbags and Fenders Co.,Ltd in 2011, Qingdao Luhang had been devoted itself to developing and manufacturing marine airbags and marine fenders for more than 2 decades.

The factory area is 56,000m² with building area of  21,000m². The company has registered capital of USD 3 million and fixed asset of USD1.2 billion. We have a full line of production equipment: rubber mixing machine, rubber roller machine, the China biggest vulcanization tanks, the biggest Press Inspection Machine, EVA foam processing machine, Foam shaping machines and SPUA spraying machine.

Through these years' development, we have full range of marine airbags and marine fenders:

Ship Launching Airbags for ship launching and docking in shipyards

Marine Salvage Airbags for salvaging sinked vessels or refloating objects from under water

Other Airbags for special usage

Pneumatic Rubber Marine Fenders for ships and docks berthing

Foam Filled Marine Fenders for ship and docks berthing

Fixed Dock Rubber Fenders for docks and wharfs

Marine Buoys

From the begginning we have been focusing on technological innovation. With a team of experienced technicans and engineers, we have developed some high tech marine products and got some petents. We have been approved as a supplier of Navy products.

Quality is our life line. We provide service of “three guarantees” (returning, repairing and replacing) on all our products in case of any defects due to the problems of material,manufacturing, performance under conditions of normal operation and maintenance.
