Ship Launching Airbags

Ship Launching Airbags of Qingdao Luhang

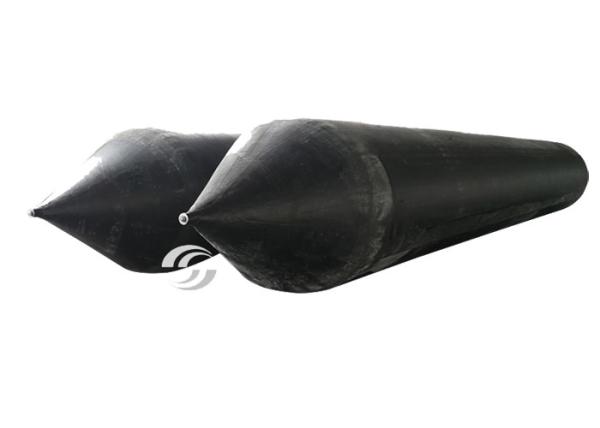

The marine rubber airbags for ship launching, also known as marine airbags, ship launching balloons, and rubber roller airbags, are used to protect and assist ships and barges in safely launching into the water. These marine airbags for ship launching are in the shape of a balloon, made of rubber, and filled with air inside. They are placed under the ship's bottom at the standard working pressure for rolling and transporting the ship. Using marine airbags for ship launching is an alternative launching technology, which is more economical and has lower labor costs. Marine airbags are sometimes also used for heavy lifting and salvage operations in fields such as water conservancy, offshore, construction, mining, and the oil and gas industry. Since the birth of marine airbags for ship launching, they have been playing an increasingly important role. Marine airbags are manufactured in accordance with the following standards and the specifications of two airbag launching technologies.

Structural Features

According to the requirements of the ISO 14409 standard, our marine rubber airbags for ship launching are composed of the following parts:
A cylindrical roller body and two hemispherical conical heads at both ends, which are used to connect the main body of the ship launching airbag and the ports of the airbag. Our inflatable ship launching airbags are manufactured using the original holistic wrapping technology. This technology further enhances the strength of the marine airbags for ship launching.

Reinforcement Layer

The reinforcement layer is the middle layer of the ship launching airbag, which is coated with rubber. Our marine airbags use only one type of synthetic cord rubber dipped layer that is wound at an ideal angle.

Marine Airbags for Ship Launching

Structure Description of Marine Airbags for Ship Launching: 1. Port 2. Head 3. Body

As a reinforcing material, the density of the warp should be at least 90 cords per 100 mm in width, and the breaking strength of each cord should not be less than 205 Newtons.

Inner and Outer Rubber Layers

The inner and outer rubber layers of our marine rubber airbags for ship launching have sufficient tensile strength and tear strength to meet the relevant requirements. We fully comply with the ISO 14409 standard and will test the raw rubber materials according to the order.

Specification Parameters

The standard specification of the ship launching airbag is Diameter (D) × Effective Length (EL).

Marine Airbags for Ship Launching

The following table shows the general performance parameters of marine airbags for ship launching with 7 layers, 8 layers, 9 layers, and 10 layers. You are welcome to inquire.

RH-7 layers

RH-8 layers

Requirements of ISO 14409 Standard

Airbag Standard

If the airbigs from china factory ship launching airbags caters to your requirement, welcome to buy or wholesale with our factory. As one of the leading manufacturers and suppliers in China, we will offer you the most competitive price and the best service.

Initially established as Qingdao Luhang Marine Airbag Factory in 1988 and changed to Qingdao Luhang Marine Airbags and Fenders Co.,Ltd in 2011, Qingdao Luhang had been devoted itself to developing and manufacturing marine airbags and marine fenders for more than 2 decades.

The factory area is 56,000m² with building area of  21,000m². The company has registered capital of USD 3 million and fixed asset of USD1.2 billion. We have a full line of production equipment: rubber mixing machine, rubber roller machine, the China biggest vulcanization tanks, the biggest Press Inspection Machine, EVA foam processing machine, Foam shaping machines and SPUA spraying machine.

Through these years' development, we have full range of marine airbags and marine fenders:

Ship Launching Airbags for ship launching and docking in shipyards

Marine Salvage Airbags for salvaging sinked vessels or refloating objects from under water

Other Airbags for special usage

Pneumatic Rubber Marine Fenders for ships and docks berthing

Foam Filled Marine Fenders for ship and docks berthing

Fixed Dock Rubber Fenders for docks and wharfs

Marine Buoys

From the begginning we have been focusing on technological innovation. With a team of experienced technicans and engineers, we have developed some high tech marine products and got some petents. We have been approved as a supplier of Navy products.

Quality is our life line. We provide service of “three guarantees” (returning, repairing and replacing) on all our products in case of any defects due to the problems of material,manufacturing, performance under conditions of normal operation and maintenance.
