Brand Name : | Lu Hang |
Model Number : | LH2540 |
Certification : | CCS/BV/ABS/SGS |
Price : | To be negotiated |
Payment Terms : | T/T, L/C |
Supply Ability : | 100 Units per Month |
Delivery Time : | 10-15 work days |
Fender Crane
Company Profile
Qingdao Luhang Airbag Fender Co., Ltd. was established in 1988 and
is headquartered in Qingdao.The company was formerly the Air Force
Jinan Luhang Airbag Factory, which was later restructured into a
private enterprise and renamed to its current name in 2011.
Luhang has become a high-tech enterprise integrating scientific
research, design, production, sales and services, and its products
are exported to more than 40 countries and regions around the
world.The fender crane supporting production project will start in
2021.
Fender Davit
2.0mx6.5m Fender Davit 2.0mx9.0m Fender Davit
2.0mx6.5m Fender Davit 2.0mx9.0m Fender Davit

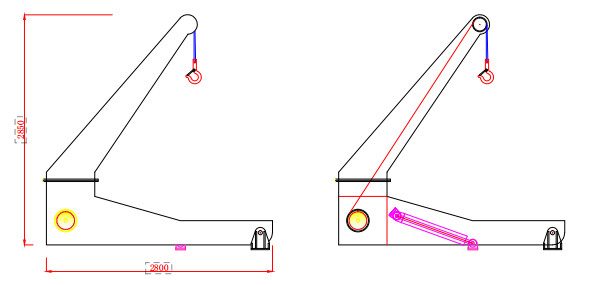

Drawing
SAFTY WORKING LOAD | 3T |
WORKING RADIUS | 1-2.5M |
LIFTING SPEED | 0-15m/min |
SLEWING SPEED | 0-1.5r/min |
SLEWING ANGLE | 90° |
LIFTING HEIGHT | 30M |
SYSTEM PRESSURE | 8MPa |
ELECTRIC MOTOR | 380V/50Hz2.2kw |

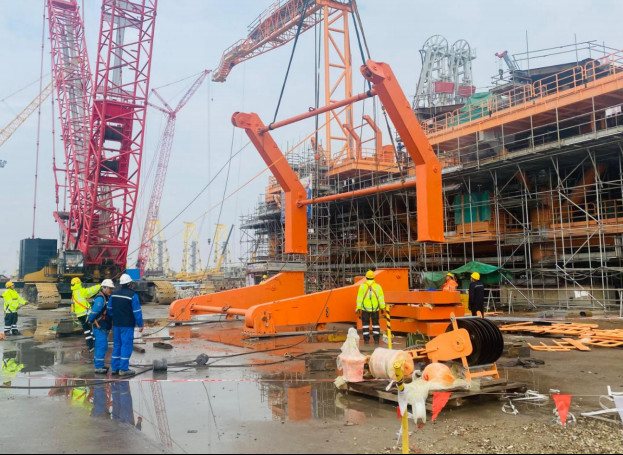

Project Introduction
The Hong Kong LNG Platform Project, Built By CNOOC, Is On Lantau
Island In Hong Kong, China
Purchase 4 2*3.5, 1 4.5*9 Fender And Supporting Crane
Voltage: 400v
Flip Drive: Hydraulic Cylinder
Lifting Drive: Hydraulic Winch
Hydraulic Power System: Each Independent
Operating System: Button Operation
Maple Leaf Shipyard builds FLNG ship, the shipowner is a
Singaporean shipowner
Purchase three ship cranes and fenders,
4 2.5*3 fenders and supporting cranes for each ship
Voltage: 220v/380v
Turning drive: hydraulic cylinder
Lifting drive: hydraulic winch
Hydraulic power system: hull connection
Operating system: explosion-proof electrical cabinet +
button control + remote control
