Yokohama Marine Fenders 2.30 Meters Diameter

Ask Lasest Price
Brand Name :	Qingdao luhang
Model Number :	LH-6
Certification :	CCS,BV,LR,DNV,SGS,ABS
Price :	negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	negotiable
Delivery Time :	8 work days

Add to Cart

Product Details
Company Profile

Yokohama Marine Fenders 2.30 Meters Diameter

Inflatable Marine fenders are commonly used for ship-to-ship transfer fenders and are also used for ship-to-moor operations in shipyards/docks. It was previously invented by the manufacturer of YOKOHAMA, so it is now also called Yokohama Marine fender or Marine anchorage ball. Marine ball after years of improvement, the use of special production technology and high-performance materials, so that it has better energy absorption characteristics. Marine ball installation is convenient, foldable delivery, for buyers to save 2/3 of the transportation cost, is a better choice to protect large ships.

Send Inquiry

Description

Inflatable fenders range in diameter from 300 mm to 4,500 mm. Lengths range from 500 mm to 12,000 mm, as well as special sizes. Suspension or sheath models are available in two sizes. Inflatable fenders are available in standard sizes, while we can customize any size of inflatable fender to meet user requirements. The colors are usually black and gray (navy blue), and if you need more, we are willing to provide custom service.

Pneumatic Rubber Fenders In Marine

BASIC STRUCTURE

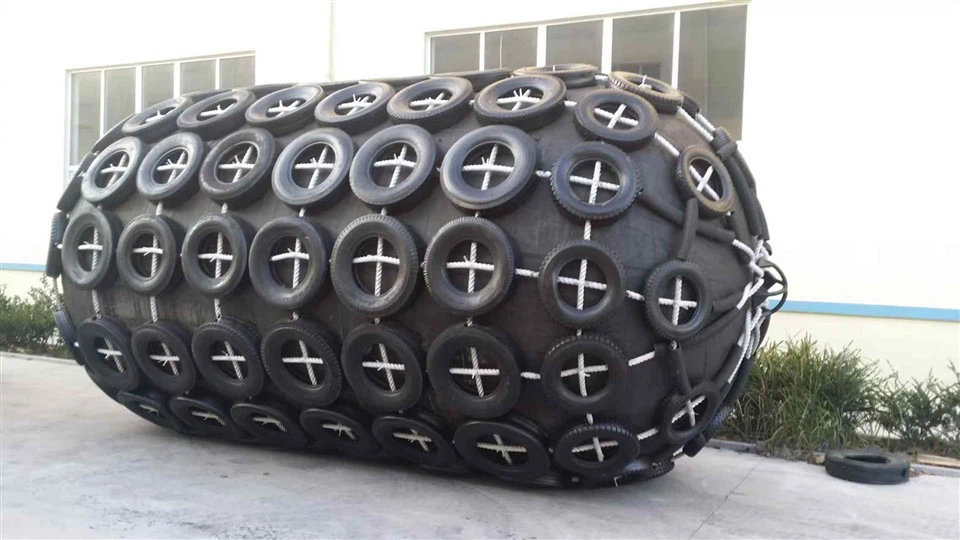

Marine ball Type A (Jacket type)		Marine ball Type B (Suspension type)
Sheath type inflatable fender covered with chain mesh, wire mesh or fiber mesh, suitable for large inflatable fender. Usually these nets have old tires and rubber sleeves for extra protection. Chain mesh is more resistant to corrosion, while wire mesh is lightweight and easier to repair.Truck tire sheathing Aircraft tire sheathing		Suspended inflatable fenderFrom φ500×1000L - φ4500×12000L size,Each end has a hanging eye for easy lifting.Due to its light weight, the mounted inflatable fender is easier to install.

Customizable Yokohama Floating Fender

Fully compliant with ISO 17357 and PIANC 2014 standards

Pass a comprehensive test for material and hydrostatic pressure irregularity

Performance is evaluated by Angle and durability

Clearly marked with all relevant signage

Complete new certification

Available in a variety of sizes

It is composed of an inner rubber layer, a reinforced cord layer and an outer rubber layer

The thicker outer surface replaces the outer surface of the normal fender

Equipped with safety valve for Marine balls with a diameter of more than 2.5m

50 kPa inflatable fender performance requirements

Performance requirements (energy absorption and reaction force) for inflatable fenders exceed ISO17357,

The following shows only ISO17357 requirements. Please contact the sales department for specific data.

Nominal size		Internal pressure 50kPa at 60% deflection			Safety valve pressure setting	Test pressure
diameter	Length	Energy absorption	Reaction force	Hull pressure
mm	mm	kN·m	kN	kPa	kPa	kPa
500	1000	6	64	132	-	200
600	1000	8	74	126	-	200
700	1500	17	137	135	-	200
1000	1500	32	182	122	-	200
1000	2000	45	257	132	-	200
1200	2000	63	297	126	-	200
1350	2500	102	427	130	-	200
1500	3000	153	579	132	-	200
1700	3000	191	639	128	-	200
2000	3500	308	875	128	-	200
2500	4000	663	1381	137	175	250
2500	5500	943	2019	148	175	250
3000	6000	1309	2387	148	175	250
3300	4500	1175	1884	130	175	250
3300	6500	1814	3015	146	175	250
3300	10600	3067	5257	158	175	250
4500	9000	4752	5747	146	175	250
4500	12000	6473	7984	154	175	250

80 kPa inflatable fender performance requirements

The performance requirements (energy absorption and reaction force) of the Rsea inflatable fender exceed ISO17357,

The following shows only ISO17357 requirements. Please contact Sales Department for specific data.

Nominal size		Internal pressure 50kPa at 60% deflection			Safety valve pressure setting	Test pressure
diameter	Length	Energy absorption	Reaction force	Hull pressure
mm	mm	kN·m	kN	kPa	kPa	kPa
500	1000	8	85	174	-	250
600	1000	11	98	166	-	250
700	1500	24	180	177	-	250
1000	1500	45	239	160	-	250
1000	2000	63	338	174	-	250
1200	2000	88	390	166	-	250
1350	2500	142	561	170	-	250
1500	3000	214	761	174	-	250
1700	3000	287	840	168	-	250
2000	3500	430	1150	168	-	250
2500	4000	925	1815	180	230	300
2500	5500	1317	2653	195	230	300
3000	6000	1890	2906	196	230	300
3300	4500	1640	2476	171	230	300
3300	6500	2532	3961	191	230	300
3300	10600	4281	6907	208	230	300
4500	9000	6633	7551	192	230	300
4500	12000	9037	10490	202	230	300

If the yokohama marine fenders 2.30 meters diameter caters to your requirement, welcome to buy or wholesale with our factory. As one of the leading manufacturers and suppliers in China, we will offer you the most competitive price and the best service.
