Berthing D Type Marine Rubber Fender Customized Size Tug Boat Fender

Qingdao Luhang Marine Airbag and Fender Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Berthing D Type Marine Rubber Fender Customized Size Tug Boat Fender from wholesalers

    Buy cheap Berthing D Type Marine Rubber Fender Customized Size Tug Boat Fender from wholesalers
    • Buy cheap Berthing D Type Marine Rubber Fender Customized Size Tug Boat Fender from wholesalers
    • Buy cheap Berthing D Type Marine Rubber Fender Customized Size Tug Boat Fender from wholesalers

    Berthing D Type Marine Rubber Fender Customized Size Tug Boat Fender

    Ask Lasest Price
    Brand Name : LuHang
    Model Number : LH2540
    Certification : CCS BV Certification ISO17357 ISO9001
    Price : To be negotiated
    Payment Terms : T/T, L/C
    Supply Ability : 30 Units Per Month
    Delivery Time : 10-15 work days
    • Product Details
    • Company Profile

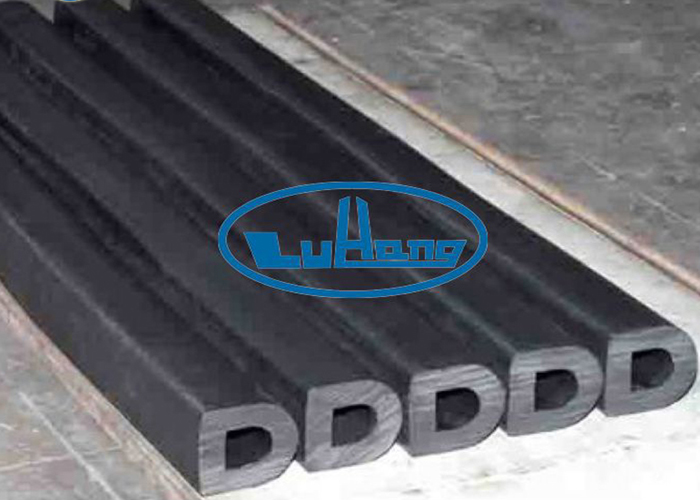

    Berthing D Type Marine Rubber Fender Customized Size Tug Boat Fender

    Marine Berthing D type Rubber Fender Size Customize Tug Boat Fender
    D type rubber fender is one kind multi-purpose profile fender. D type rubber fender can be used as the secondary protection system for frame type wharf and shore protection of the wharf. It also can be used for the tug or barge.
    LUHANG is a trusted supplier for high performance marine rubber fenders for ports , jetties , wharfs , quays and harbours in the global market . Our fender factory in Shandong province takes pride in supplying ultra-reliable , high level rubber fenders while practising highly-automated precise manufacturing procedures to keep our production competitive , consequently providing the best value to our customers .
    A marine rubber fender acts as a “dock bumper” to absorb the kinetic energy of a boat / vessel during berthing against a jetty or a quay wall .
    Mrine D type rubber fenders have easy to install and replace. It can be installed vertically or horizontally. We have two types D-type rubber fender.
    One is vertical side profile. Another type is inclined side profile.
    D type rubber fenders have reasonable reaction force. Its energy absoption is high. But reaction force is reltively too high. Comparing D type rubber fender has the lowest energy absorption for reaction force per unit.
    Specification:
    Height(mmLength(mmBAPNWeight kg
    2501000250150700290
    25010002501004003100
    25015002501506003100
    25015002501003255150
    300900300150600290
    30010003001507002100
    30010003001004003100
    30015003001506003150
    30015003001003255150
    5009005001003503252
    50010005001004003280
    50015005001003255420
    Installation of D type Rubber Fenders
    The representative installation material of D type rubber fenders include bolts, nuts, pressing board, washer. Refer the below drawing. For more details, please contact us.

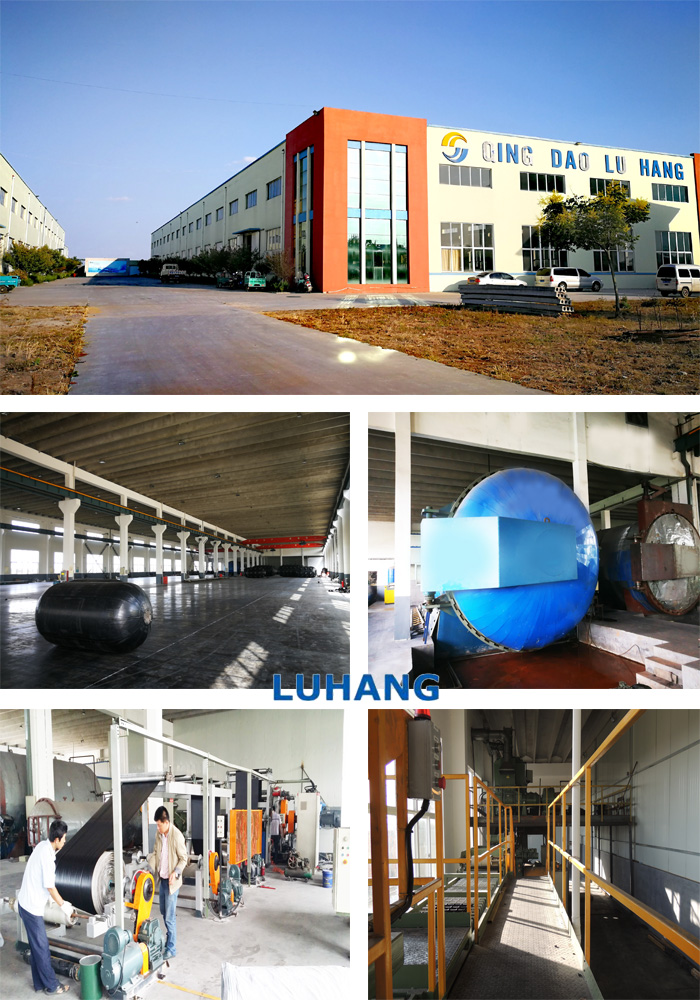

    Company
