High Efficiency Oil and Gas Terminal Cone Rubber Marine Fender for Docks and Ports

Cone Fenders with the conical body shape and frontal mount steel frame are the latest generation product of “cell” type fenders, with optimal performance and efficiency. They provide an excellent energy capability with a low reaction (their designed compress deformation rise from 52.5% to 70% while the reaction force is unchanged.). The conical design and circular mounting base make them extremely stable fenders especially where angular performance is required.

The normal compression of a LuHang Cone Fender is 70% and its maximum compression is 72%. They are available in sizes from 600mm high to 1300mm high.

LuHang Cone Fenders have excellent energy characteristics, with up to 72% compression for greater travel, and are highly effective even in severe angular berthing applications. This outstanding performance enables a cone fender to be used instead of a larger and more costly alternative. With their extreme stability and resistance to shear as well as their angular berthing performance, LuHang Cone Fenders provide unrivalled flexibility and economy.

Cone Fenders are ideally suited to a wide range of berthing applications including oil and LNG facilities, offshore platforms, bulk terminals, general cargo, container berths, RoRo and cruise terminals.

Features and Advantages of Luhang Cone Rubber Fenders

• Exceptionally good energy absorption to reaction force ratio (E/R)
• Outstanding energy absorption per fender weight
• High shear stability
• No loss of performance up to 10° contact angle
• Sophisticated and optimized fender geometry
• Optional overload stopper

Applications of Luhang Cone Rubber Fenders

• Container & Bulk terminals
• Oil & Gas terminals
• General cargo terminals
• Cruise terminals
• Ferry & RoRo terminals
• Navy

General Specifications on Luhang Cone Rubber Fenders

Installation Accessories

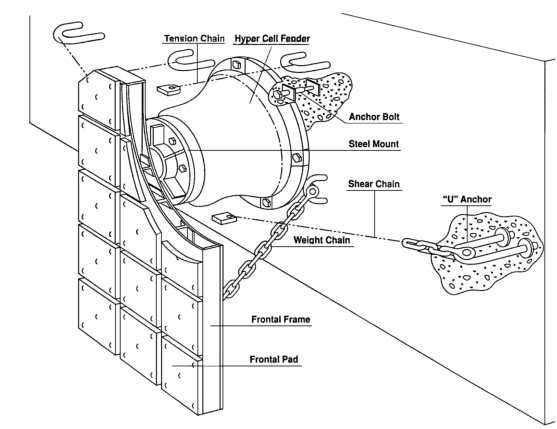

Usually, LuHang Cone Fender Series are installed with the following major accessories as shown in below:

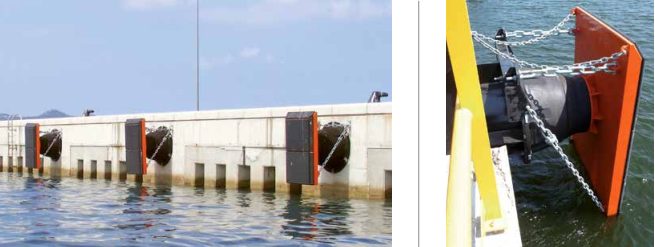

Pictures of Luhang Cone Rubber Fenders

Please do not hestiate to contact us by dropping a message here below or sending us an email for any inquiry about cone rubber fenders, which will be replied or responded immediately or at least within 24 hours.
